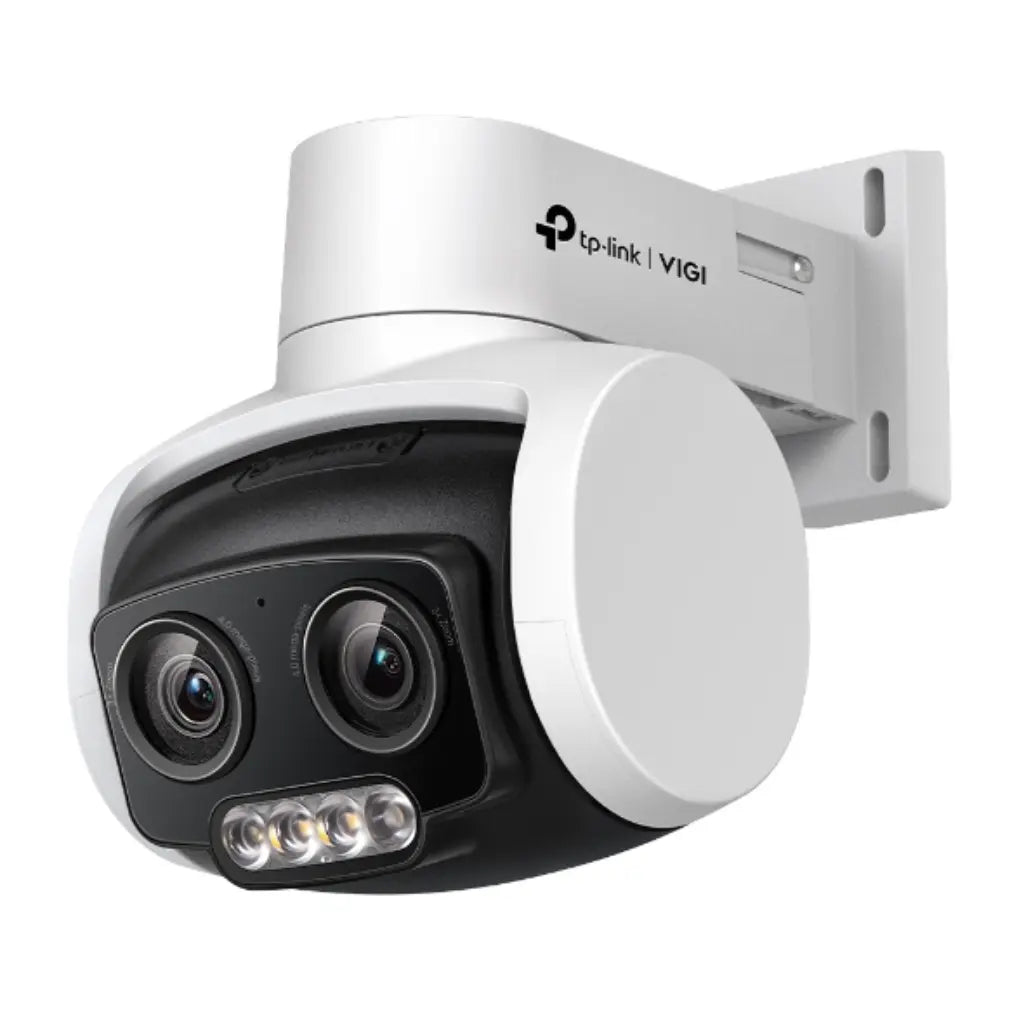

TP-Link VIGI C540V 4MP Pan/Tilt Outdoor Network Camera with 3× Zoom Full-Color Dual-Lens Varifocal Lens & IP66 Waterproof
TP-Link VIGI C540V 4MP Pan/Tilt Outdoor Network Camera with 3× Zoom Full-Color Dual-Lens Varifocal Lens & IP66 Waterproof
📷 4MP Super HD Resolution – Captures crystal-clear details for enhanced security.
🌈 24/7 Full-Color Vision – High-sensitivity sensor and supplemental lights ensure vivid color even in pitch-black conditions.
🔍 3× Optical Zoom & Instant Zoom – Get closer views without image lag or distortion.
🚶 Human & Vehicle Classification – Accurate alerts by distinguishing people and vehicles from other objects.
🔄 Powerful Pan & Tilt with Auto Tracking – Covers every corner with customizable patrol routes and smart tracking.
💧 IP66 Waterproof & Durable Design – Reliable outdoor performance in all weather conditions.
The TP-Link VIGI C540V is a professional-grade 4MP outdoor network camera designed for comprehensive surveillance. Featuring full-color night vision, dual-lens varifocal optics, and 3× zoom, it delivers sharp, vibrant images day and night. Advanced smart detection and human/vehicle classification ensure accurate alerts, while pan/tilt functionality covers every angle. Built with IP66 waterproofing and flexible storage options, it’s the ultimate solution for reliable security.
| Specifications | Details |
| Model | VIGI C540V |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Resolution | 4MP (2560 × 1440) |
| Lens Type | Varifocal Dual-Lens |
| Zoom | 3× Optical Zoom |
| Focal Length | 4–12 mm |
| Aperture | F1.6 |
| Field of View | Diagonal: 100°, Horizontal: 84°, Vertical: 46° |
| Pan/Tilt Range | Pan: 0°–332°, Tilt: 0°–120° |
| Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Night Vision | Full-Color with Supplemental Lights |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Smart Features | Human & Vehicle Classification, Smart Detection, Auto Tracking |
| Audio | Two-Way Audio |
| Storage | MicroSD (up to 256GB), NVR, VIGI App |
| Waterproof Rating | IP66 |
| Power Supply | PoE / 12V DC |
| Country of Origin | China |
| Model Number | VIGI C540V |
| Warranty | 2 Years Warranty |
| Weight | 0.43 kg |
