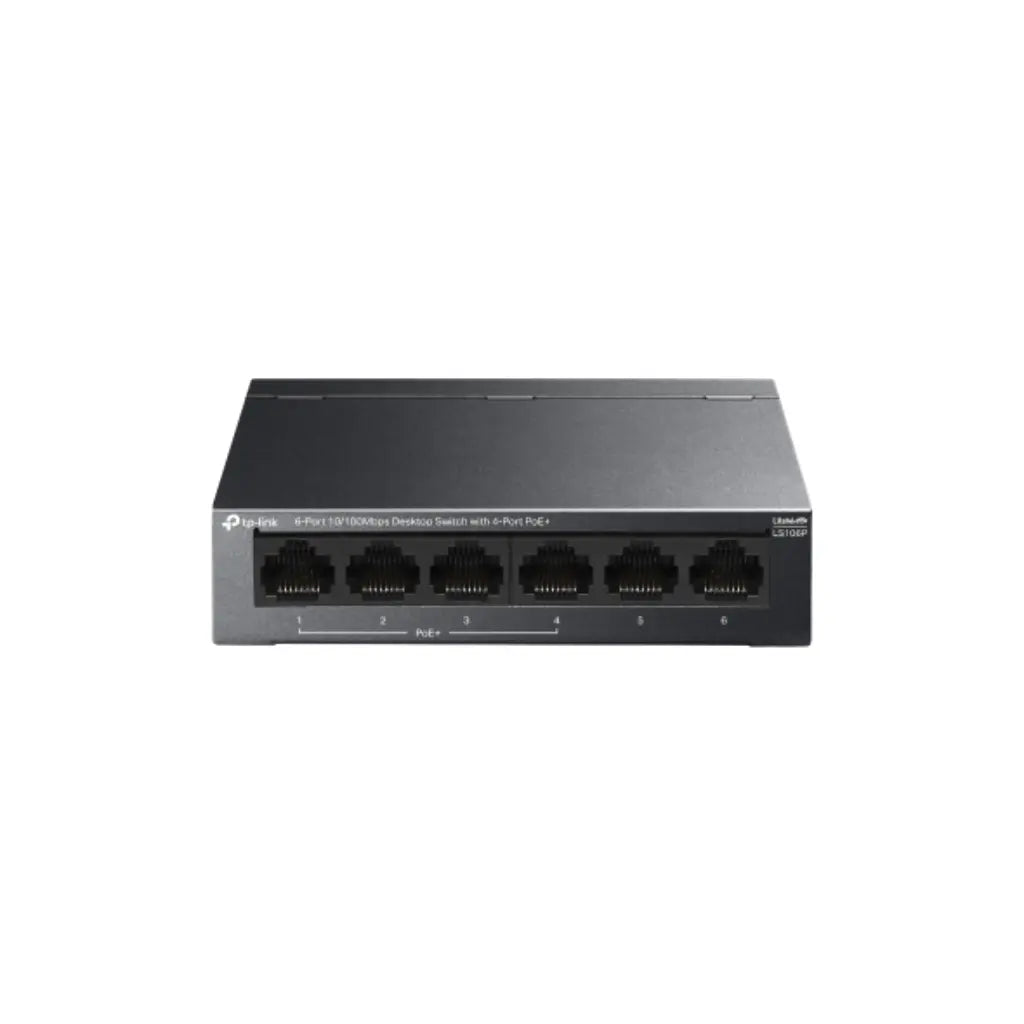

TP-Link LS106P 6-Port 10/100Mbps Desktop Switch with 4 PoE+ Ports
TP-Link LS106P 6-Port 10/100Mbps Desktop Switch with 4 PoE+ Ports
🔌 6-Port Fast Ethernet – Includes 4 PoE+ ports and 2 non-PoE ports for flexible connectivity.
⚡ 65W PoE Budget – Delivers up to 30W per PoE+ port, ideal for IP cameras and access points.
📏 Extended Range – Supports up to 250m data and power transmission in Extend Mode.
🔒 Isolation Mode – One-click client traffic separation for enhanced security and performance.
🔄 PoE Auto Recovery – Automatically reboots unresponsive PoE devices for stable operation.
🔇 Silent Fanless Design – Energy-efficient and noise-free, perfect for home or office use.
The TP-Link LS106P is a 6-Port 10/100Mbps Desktop Switch featuring 4 PoE+ ports and a total 65W PoE budget, making it perfect for powering IP cameras, VoIP phones, and access points. With Extend Mode, it supports up to 250m transmission distance, while Isolation Mode ensures secure traffic separation. Its plug-and-play design, PoE Auto Recovery, and fanless operation make it an ideal choice for small businesses and surveillance setups.
| Specification | Details |
| Model | TP-Link LS106P |
| Ports | 6 × 10/100 Mbps RJ45 (4 PoE+ Ports) |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 65W Total (Up to 30W per port) |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.893 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 2048 Bytes |
| Jumbo Frame | 2 KB |
| Extend Mode | Up to 250m (Ports 1-4) |
| Isolation Mode | Supported |
| PoE Auto Recovery | Supported |
| Power Supply | External Adapter (53.5VDC / 1.31A) |
| Max Power Consumption | 66.53W |
| Dimensions (W×D×H) | 99.8 × 98 × 25 mm |
| Mounting | Desktop / Wall-Mount |
| Certifications | CE, RoHS |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Country of Origin | China |
| Model Number | LS106P |
| Warranty | 1 Years |
| Weight | 0.7 kg |
