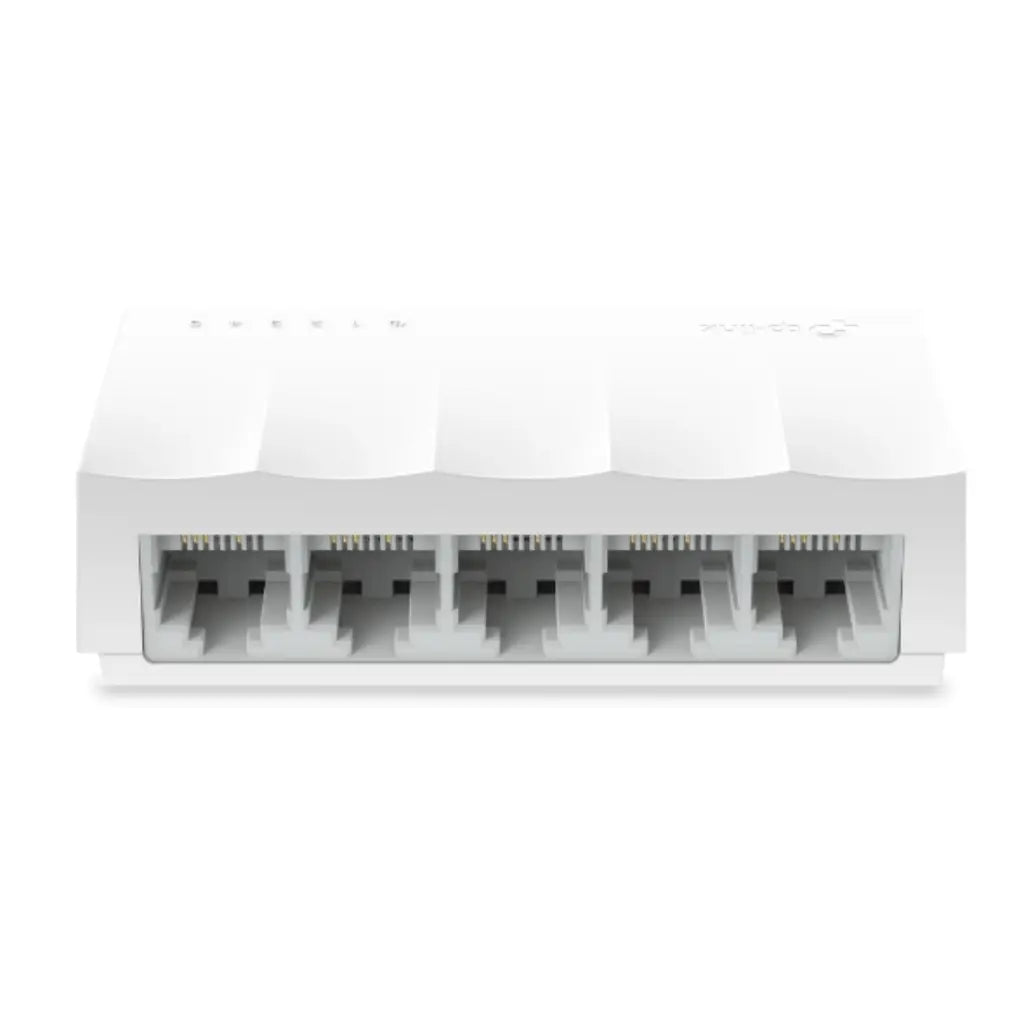

TP-Link LS1005 5-Port 10/100Mbps Desktop Network Switch
TP-Link LS1005 5-Port 10/100Mbps Desktop Network Switch
🔌 Plug & Play Setup: No configuration needed—just connect and go for instant network expansion.

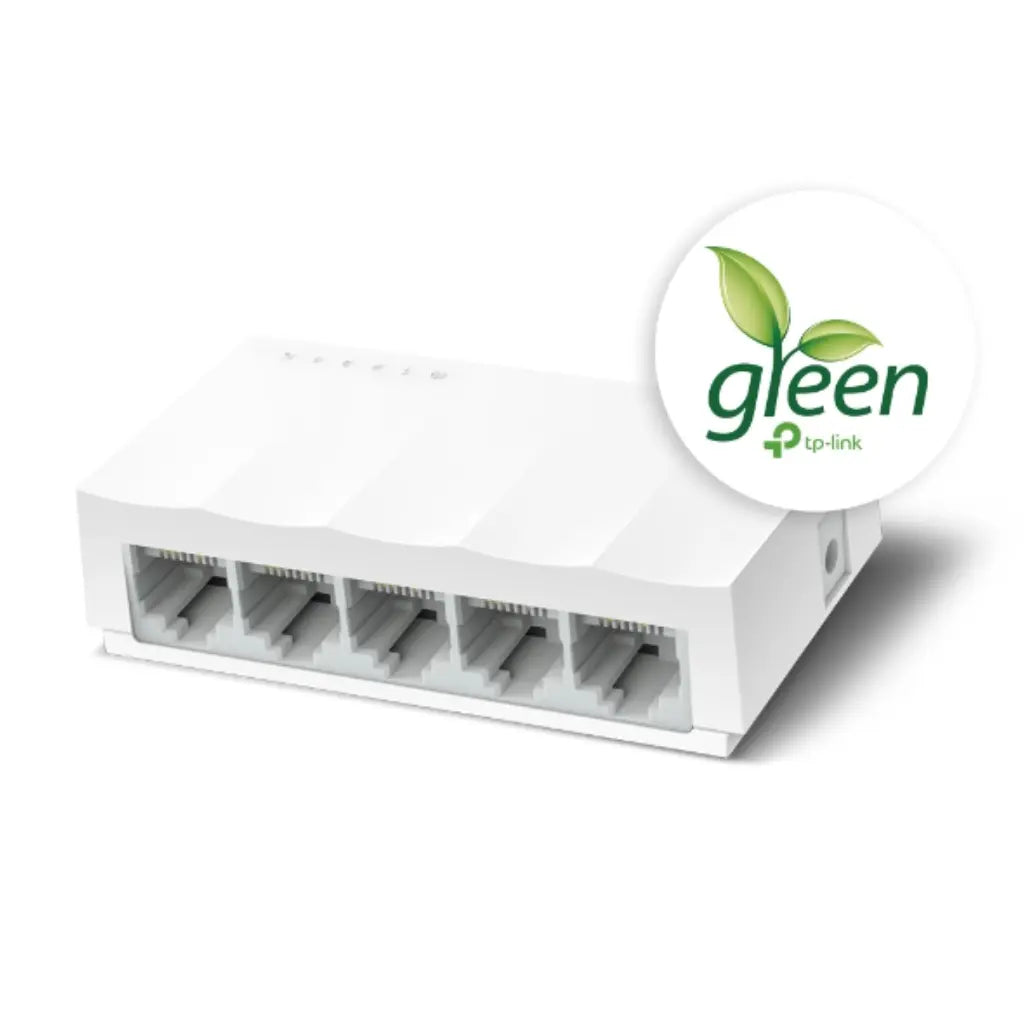

🌿 Green Ethernet Technology: Automatically adjusts power consumption based on link status and cable length to save energy.

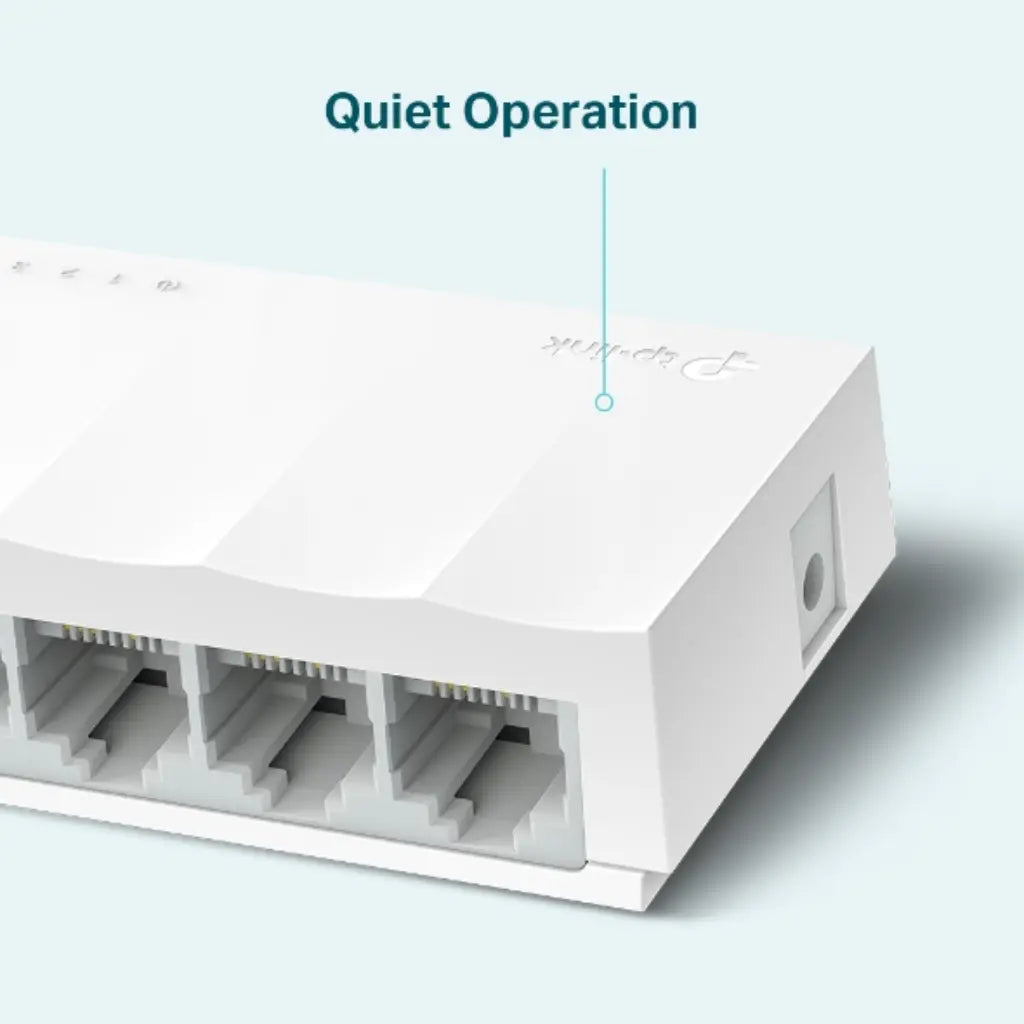

🔇 Fanless Design: Ensures silent operation, ideal for noise-sensitive environments like homes and offices.
🖥️ Compact Desktop Build: Sleek plastic casing fits easily into any workspace or home setup.
🔄 Auto-MDI/MDIX Support: All 5 ports support auto-negotiation and eliminate the need for crossover cables.
🛡️ Reliable Data Transfer: IEEE 802.3X flow control provides stable and efficient data transmission.
The TP-Link LS1005 LiteWave 5-Port 10/100Mbps Desktop Switch is a simple, cost-effective solution for expanding your wired network. With plug-and-play functionality, energy-saving Green Ethernet technology, and a fanless design, it’s perfect for quiet environments. Its compact form factor and auto-negotiation ports make it ideal for homes, small offices, and surveillance setups. Whether you're connecting PCs, printers, or IP cameras, the LS1005 delivers reliable performance with minimal setup.
| Specification | Details |
| Ports | 5 × 10/100Mbps Auto-Negotiation RJ45 ports |
| Standards | IEEE 802.3i/802.3u/802.3x |
| MAC Address Table | 2K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74 Mpps |
| Power Consumption | Maximum: 1.6W |
| Dimensions (W×D×H) | 90 × 58 × 18 mm |
| Installation Type | Desktop |
| Transmission Method | Store and Forward |
| Certifications | CE, FCC, RoHS |
| Country of Origin | China |
| Model Number | LS1005 |
| Warranty | 3 Years |
| Weight | 40 g |
